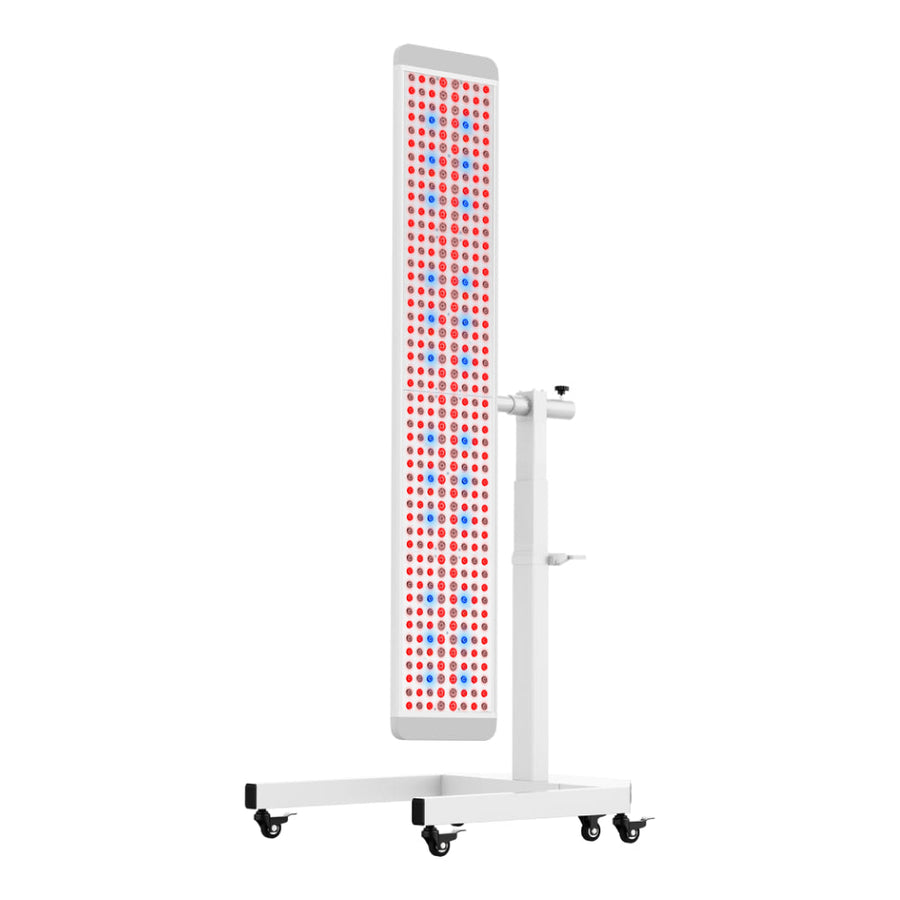

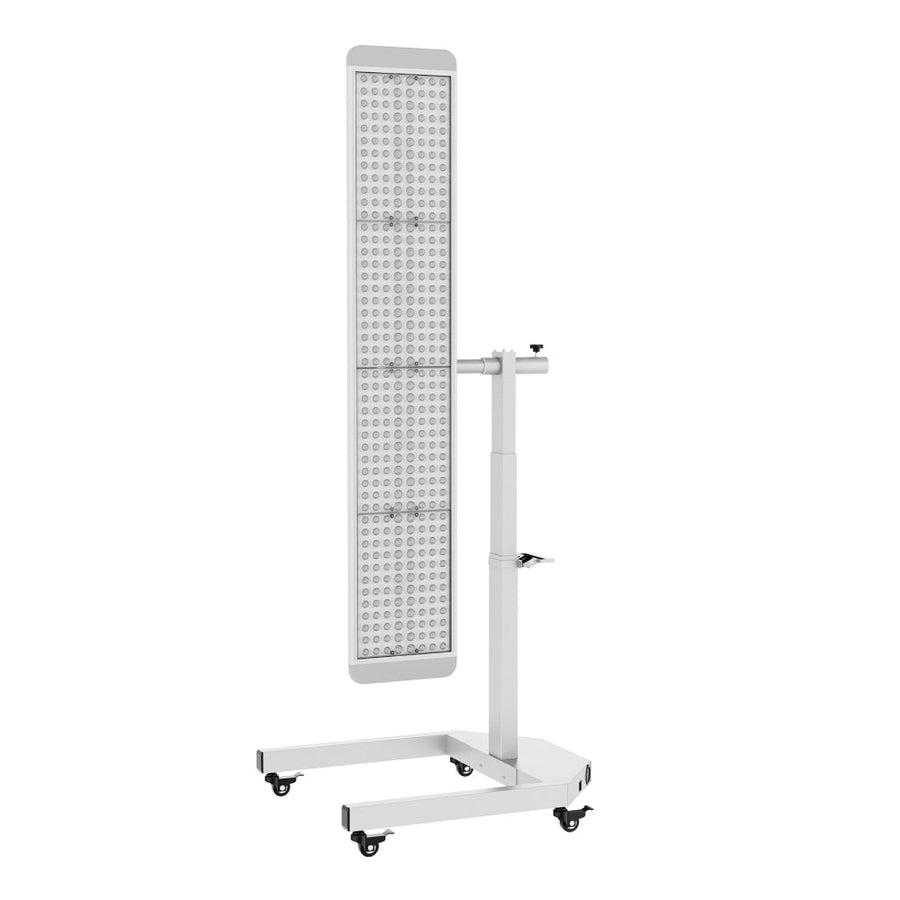

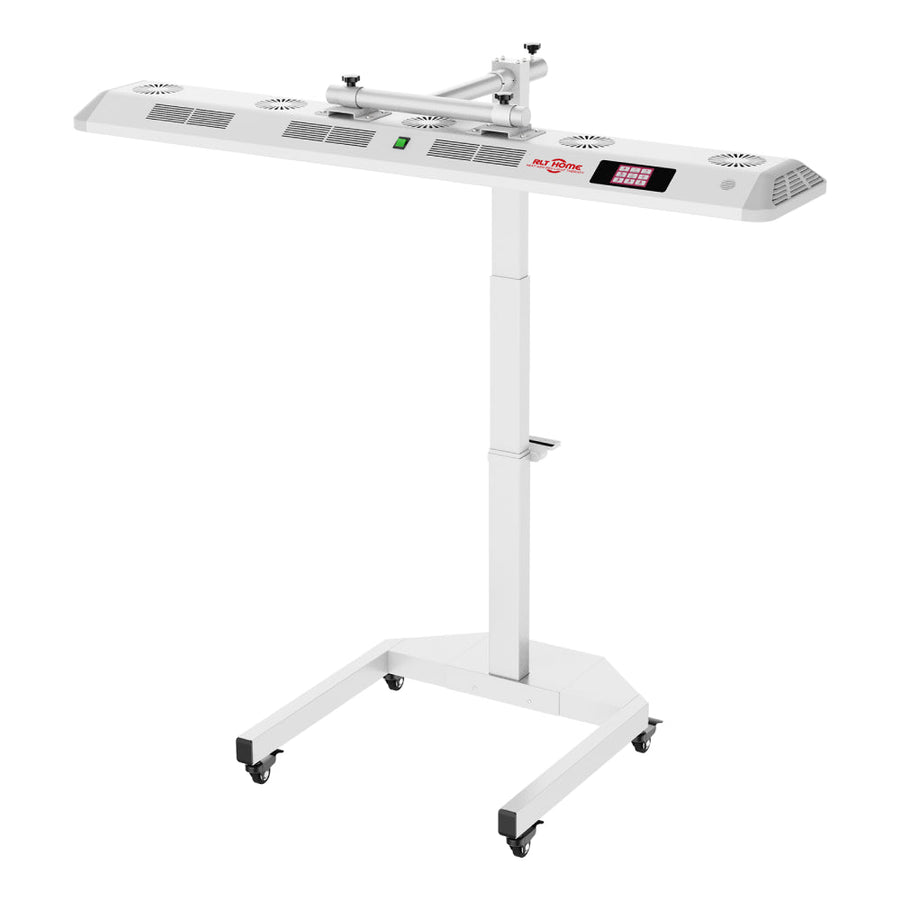

The Total Spectrum ULTRA is an advanced, easy-to-use, safe, and sturdy red light therapy system with 480 LEDs, excellent for full-body wellness and equipped with an adjustable electric stand for lying down or standing. It delivers state-of-the-art therapy with 7 thoroughly researched wavelengths (see Tech Specs for details) to promote overall wellness from the comfort of your home.
Whether you wish to focus on specific areas or use the device for full-body treatments, the ULTRA provides high power red light therapy for skin rejuvenation, deep-seated pain, inflammation, sleep disturbances, transcranial health (such as enhanced cognition or mood support), regional fat loss, and numerous other conditions. With features like intelligent voice control, Bluetooth music integration, and versatile positioning via the electric stand, this premium device is your perfect companion for beauty, pain relief, weight control, mental health, recovery and rejuvenation at home.
Tech Specs
Number of LEDs: 480

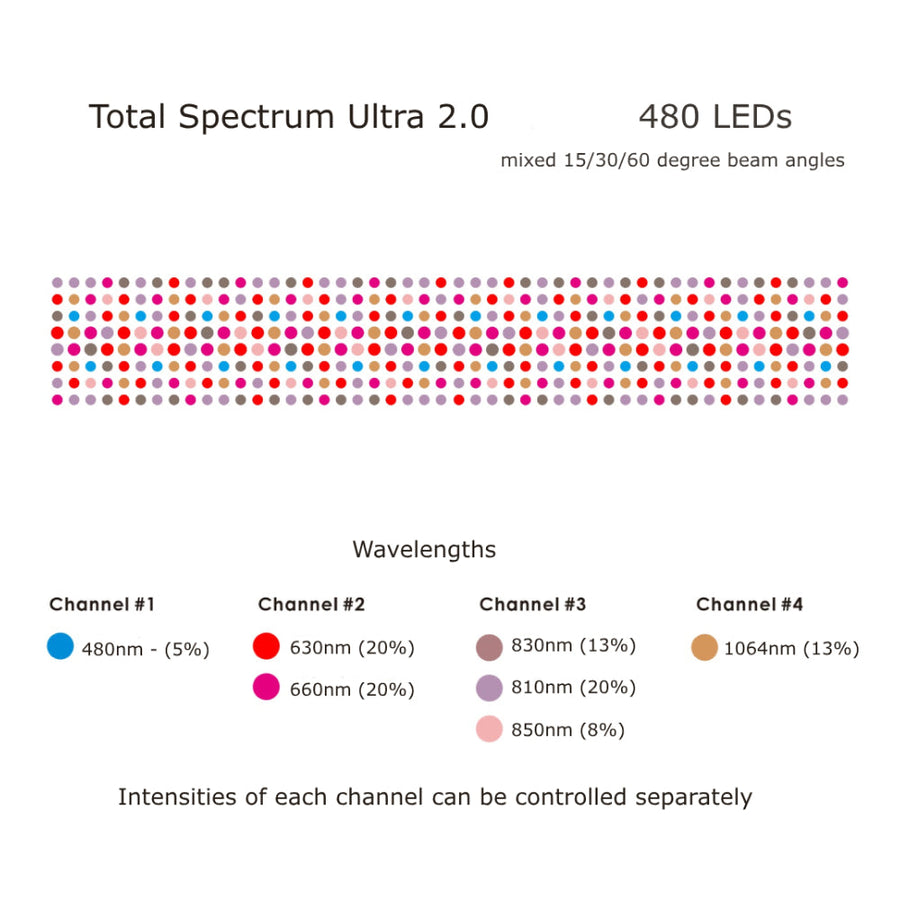

Wavelength Composition
The device combines multiple wavelengths selected after careful evaluation of 2600+ human focused studies, to create arguably the most powerful red light therapy at home.
-
480nm (Blue light) - 5% density: Targets surface-level skin concerns. Neutralizes acne-causing bacteria.
-
630nm & 660nm (Red light) - 20% density each: Supports collagen production, surface level wound healing, and anti-aging by smoothing fine lines & enhancing complexion.
-
810nm, 830nm, & 850nm (Near-infrared) - 20%, 13%, and 8% densities respectively: Penetrates deeper for pain relief, inflammation reduction, enhancing muscle recovery, strengthening joint health, and promoting restful sleep.
-
1064nm (Infrared) - 14% density: Very deep penetration used for brain function, musculoskeletal, deep tissue healing and recovery.
Irradiance and Power
As a market leader in irradiance (light energy delivery per area), our devices provide strong performance and ensure efficient sessions with noticeable results.
-

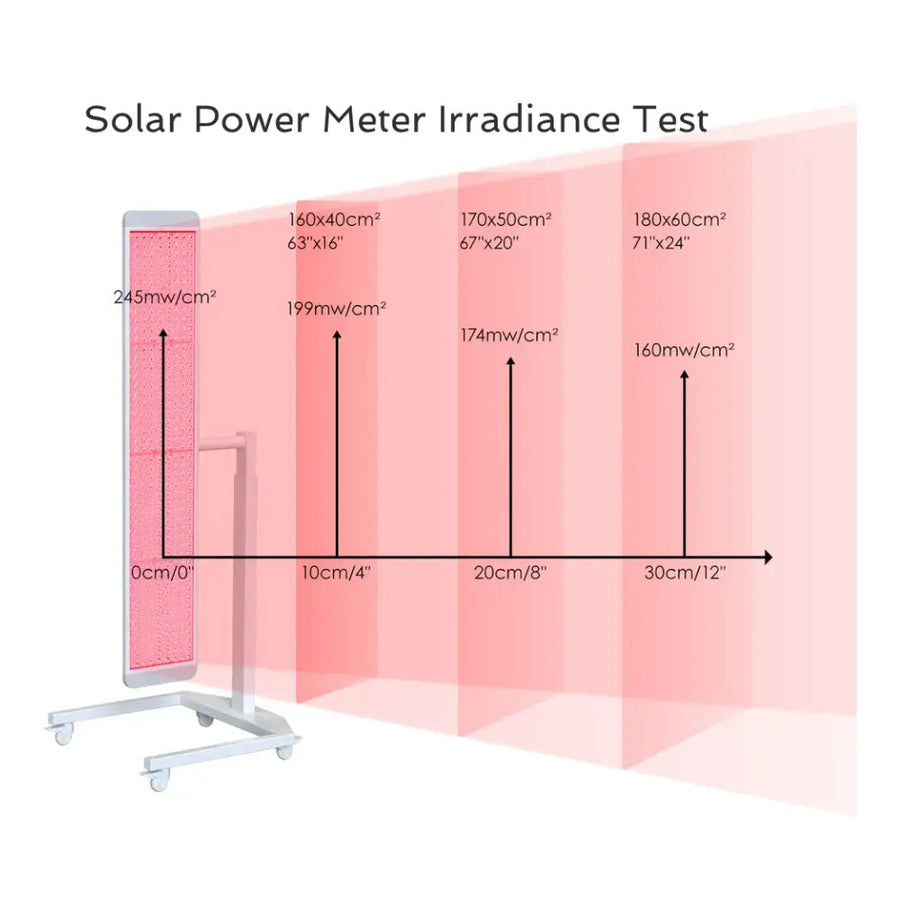

174 mW/cm² at 8 inches (measured with a Solar Power Meter)
-
134 mW/cm² at 6 inches (measured with a Spectrometer) - View images
Safety Features
Our devices are built keeping user safety in mind with no compromises.
-
No Flicker: No strobing to prevent eye strain or headaches.
-
≈0.0 μT EMF at 6 inches or greater (measured with a Cornet EMF device): Tested for lowest EMF in the industry for safer long-term use. View images
Pulsing and Modes
-
Pulsing range of 0 to 5,000 Hz: Adjustable frequencies to enhance effects like circulation or relaxation.
-

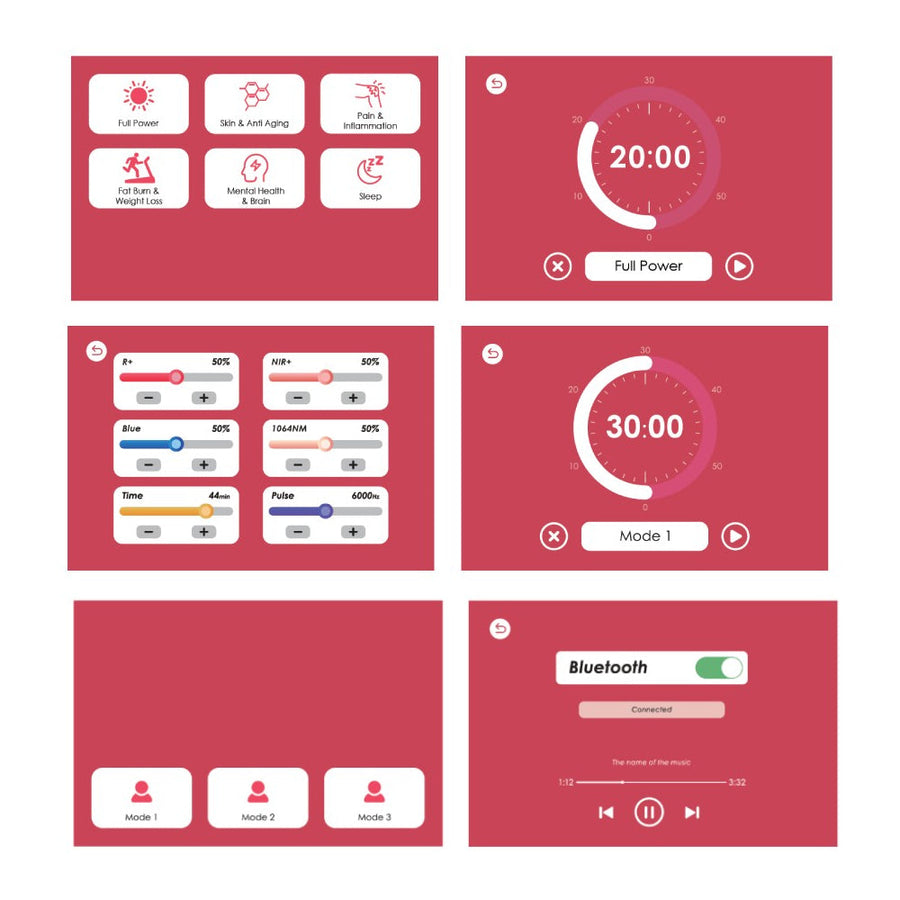

7 Prebuilt performance modes: Pre-set options for skin, pain, sleep, weight loss, mental health and more.
-
Special custom mode: Adjust intensities and pulsing for 4 channels (red, blue, near infrared and 1064nm) individually.
Controls and Design
-

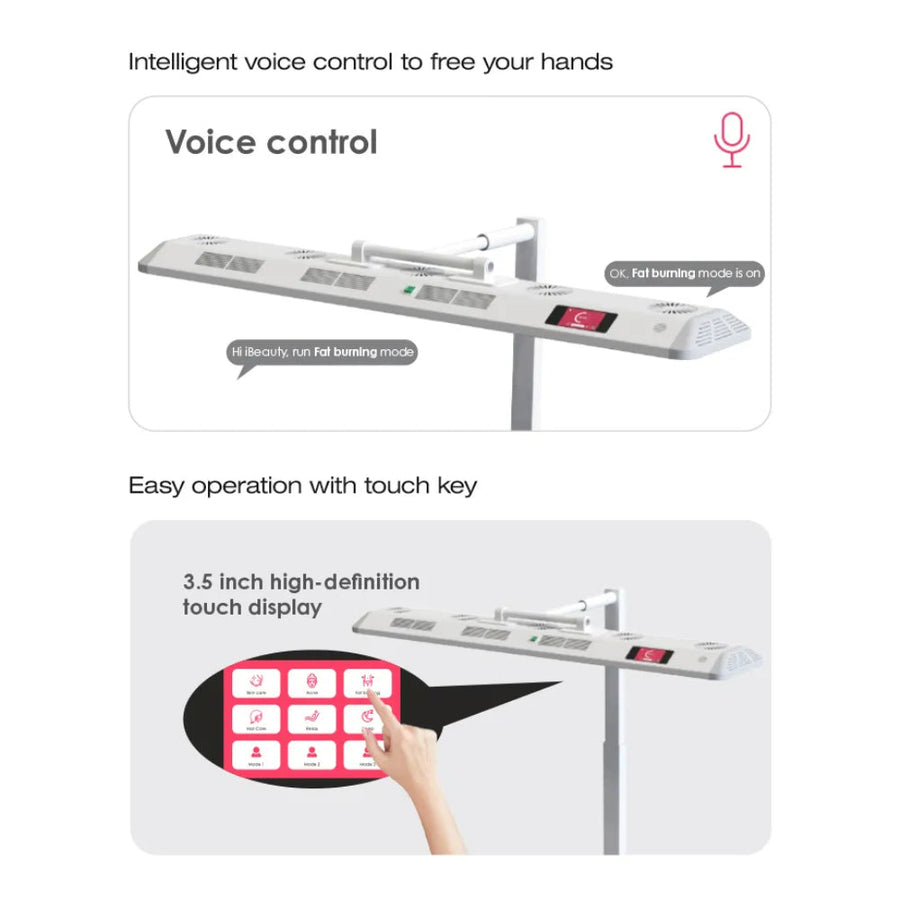

Touch interface and remote control: Easy adjustments from anywhere in the room.
-

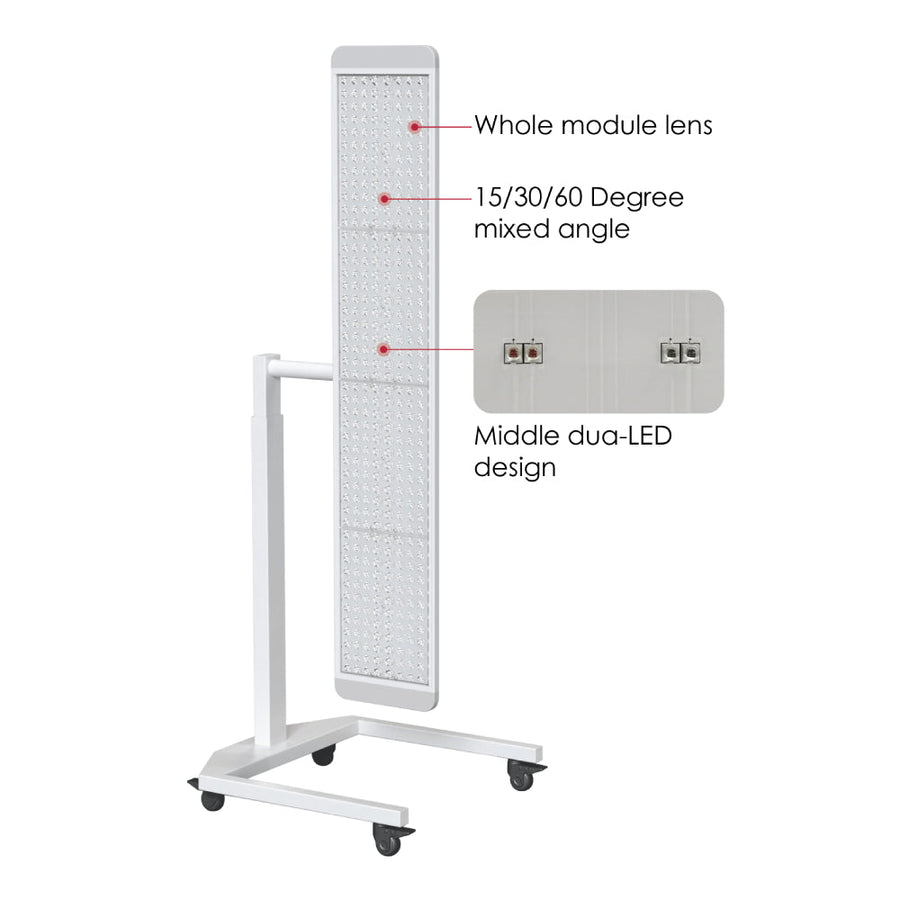

15 / 30 / 60 degree beam angles: A mix of beam angles for precise targeting of light without waste, at greater distances.
-
LED lifespan of 100,000 hours: Long-lasting LEDs equivalent to over 11 years of continuous use.
-
Voltage - AC 100-240V: Compatible with standard outlets worldwide.
Compliance and Certifications
RoHS Certificate:
RoHS stands for Restriction of Hazardous Substances. This certification ensures that our products have limited or no hazardous materials that are harmful to the environment and users. In simpler terms, these certificates ensure that our products are safe, environmentally friendly, and compliant with both European and U.S. standards.
CE Certificates: We have two CE certificates for our LED lights. These certificates confirm:
- Compliance with the European Low Voltage Directive, ensuring the product's electrical safety.
- Compliance with the Electromagnetic Compatibility Directive, ensuring the product won't interfere with other electronic devices or cause electromagnetic disturbances.
Product & Delivery Specs
The device and the adjustable electric stand are shipped separately.

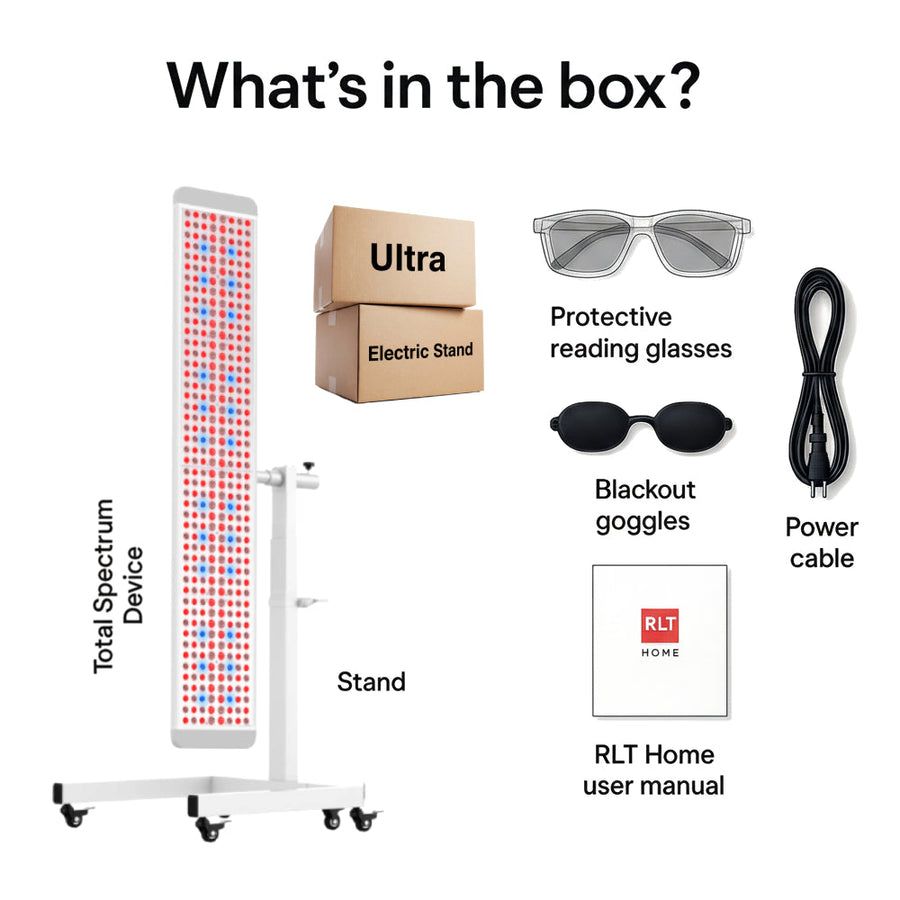

What's in the Boxes
- Total Spectrum ULTRA Device
- Adjustable Electric Stand
- Protective Reading Glasses
- Blackout Goggles
- RLT Home User Manual
- Power Cable
- Touch & Voice Controlled (Remote Not Required)

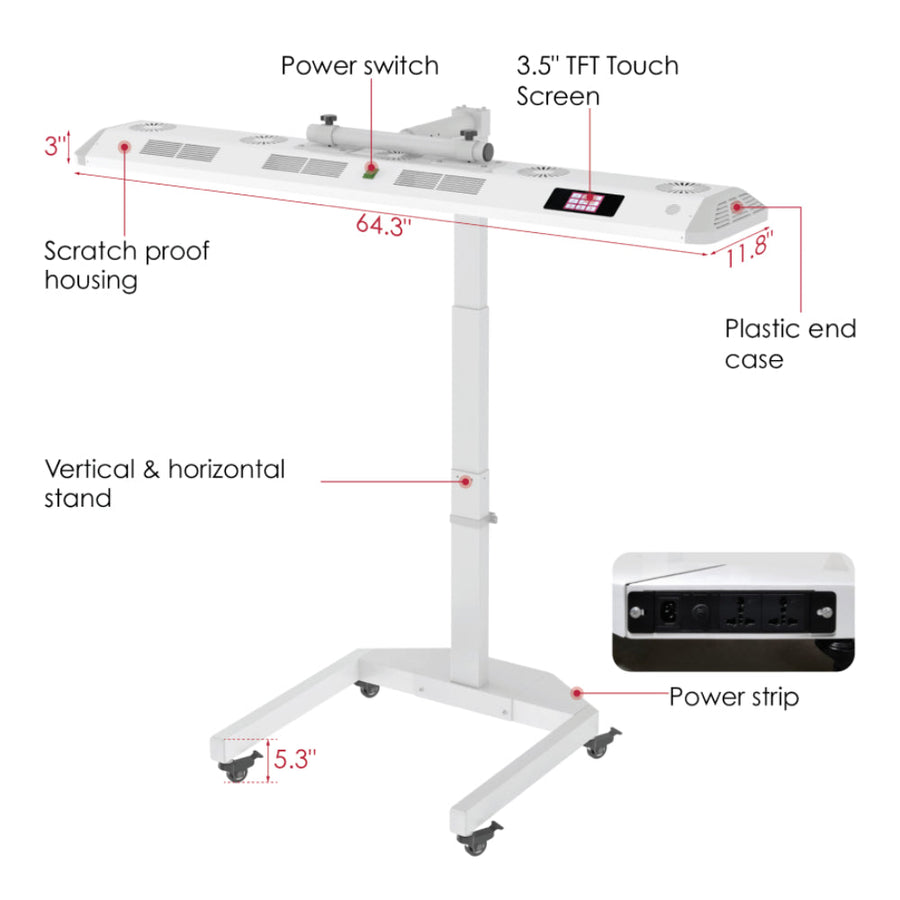

Dimensions and Weight
-
Device Size: 1635 x 300 x 75 mm / 64.3" x 11.8" x 3"
-
Device Weight: 18 kg / 39.6 lbs
-
Device Box / Shipped Size: 1810 x 390 x 170 mm / 71" x 15" x 6"
-
Device Box / Shipped Weight: 23.4 kg / 51.5 lbs
-

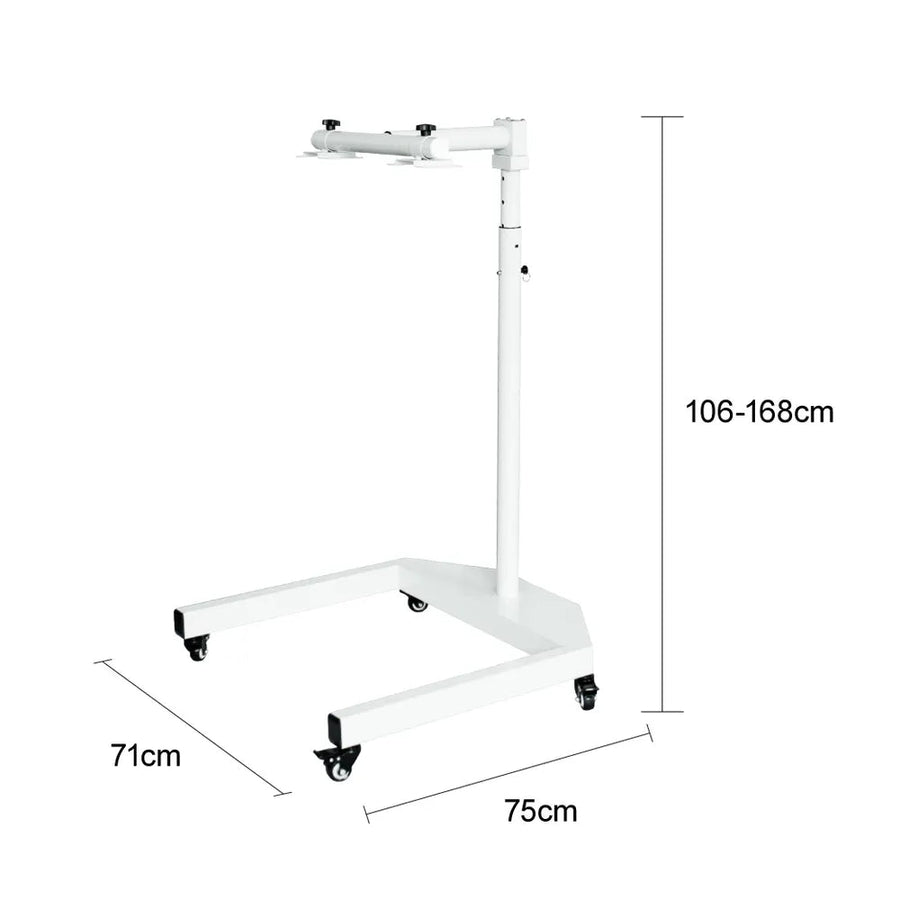

Stand Size: 838 x 711 x 127 mm / 33" x 28" x 5"
-
Stand Weight: 24 kg / 53 lbs
-
Stand Box / Shipped Size: 840 x 740 x 150 mm / 33" x 29" x 6"
-
Stand Box / Shipped Weight: 27.8 kg / 61.3 lbs
-
Installed Stand Footprint: ≈3 feet x 3 feet
-
Installed Stand Clearance under Bed/Massage Table: 5.5" with wheels / 3" without wheels
-
Installed Stand Height: Max height from the ground = 64" / Lowest height from the ground = 29"
-
Material / Housing: Iron
