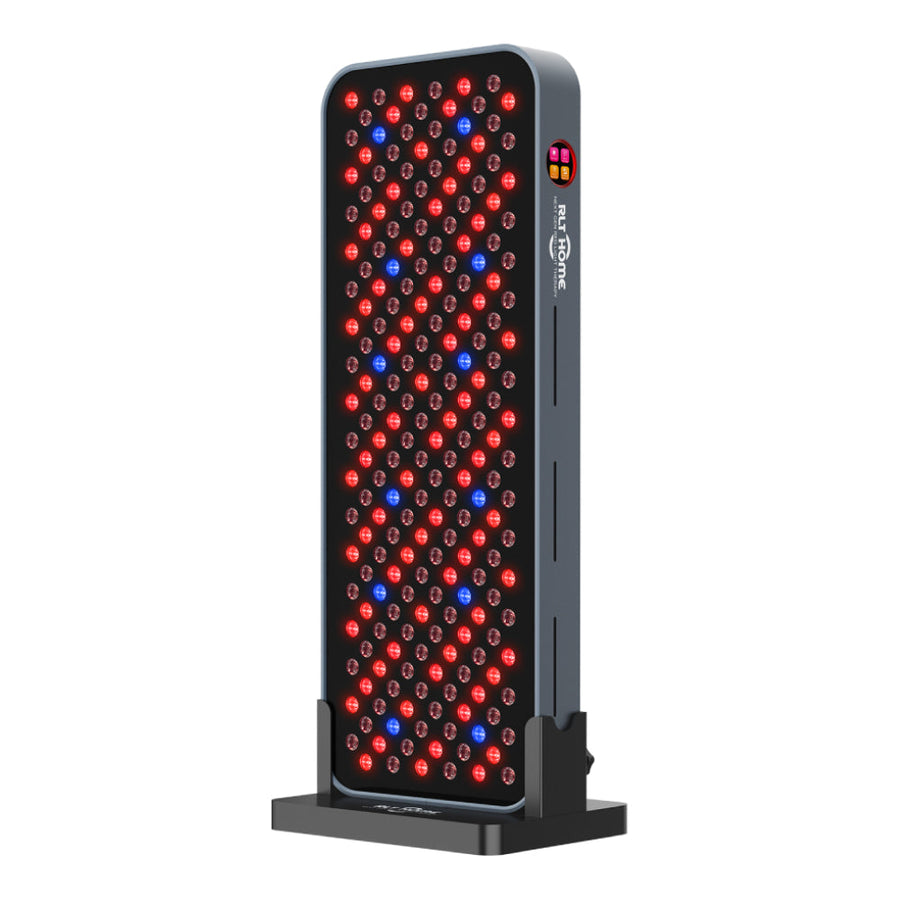

The Total Spectrum COMPACT is an intuitive, reliable, and durable red light therapy device equipped with 216 LEDs, suited for addressing medium-sized areas of the body like the back, shoulders, or legs. It offers advanced care through 7 extensively researched wavelengths (check Tech Specs for specifics) to boost holistic health from the comfort of your home.
Great for focusing on particular areas and stimulating mitochondrial function to support whole-body vitality, the COMPACT delivers exceptional results while managing skin conditions, persistent pain, swelling, sleep challenges, brain-related matters (including mental clarity or emotional uplift), targeted fat trimming, and more. A versatile device for daily home use to help with pain, recovery, blood circulation, rejuvenation and general health.
Tech Specs
Number of LEDs: 216

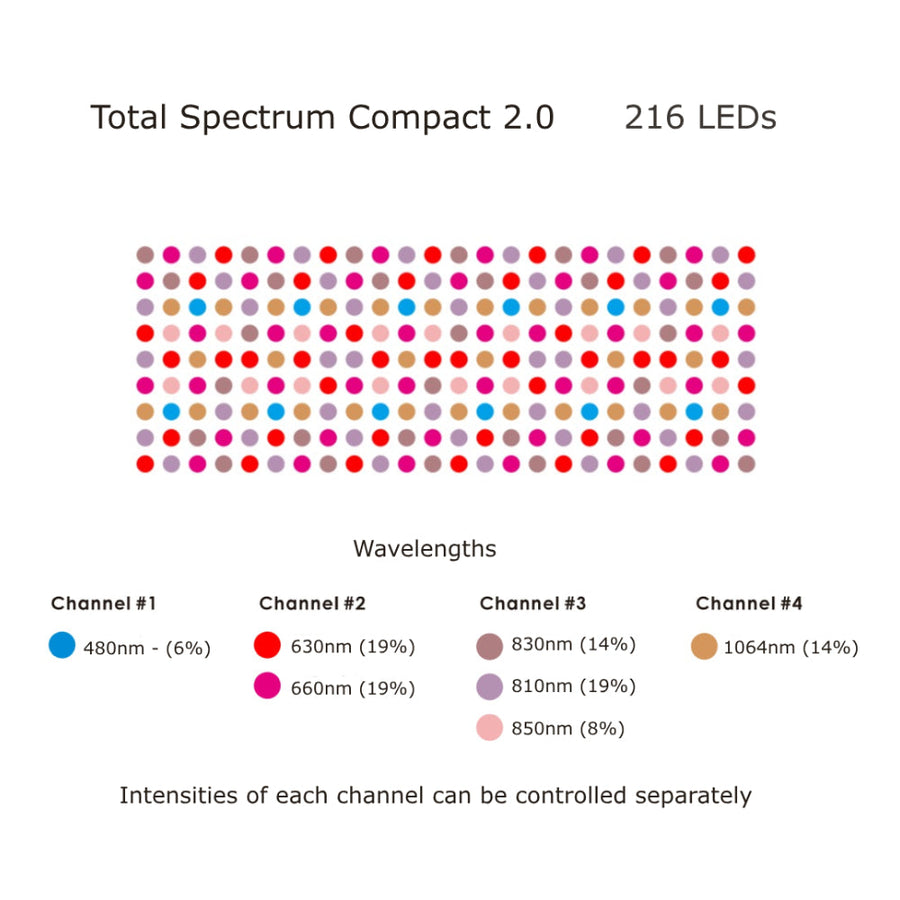

Wavelength Composition
The device combines multiple wavelengths selected after careful evaluation of 2600+ human focused studies, to create arguably the most powerful red light therapy at home.
-
480nm (Blue light) - 6% density: Targets surface-level skin concerns. Neutralizes acne-causing bacteria.
-
630nm & 660nm (Red light) - 19% density each: Supports collagen production, surface level wound healing, and anti-aging by smoothing fine lines & enhancing complexion.
-
810nm, 830nm, & 850nm (Near-infrared) - 19%, 14%, and 9% densities respectively: Penetrates deeper for pain relief, inflammation reduction, enhancing muscle recovery, strengthening joint health, and promoting restful sleep.
-
1064nm (Infrared) - 14% density: Very deep penetration used for brain function, musculoskeletal, deep tissue healing and recovery.
Irradiance and Power
As a market leader in irradiance (light energy delivery per area), our devices provide strong performance and ensure efficient sessions with noticeable results.
-
172 mW/cm² at 8 inches (measured with a Solar Power Meter)
-
99.0 mW/cm² at 6 inches (measured with a Spectrometer) - View images
Safety Features
Our devices are built keeping user safety in mind with no compromises.
-
No Flicker: No strobing to prevent eye strain or headaches.
-
≈0.0 μT EMF at 6 inches or greater (measured with a Cornet EMF device): Tested for lowest EMF in the industry for safer long-term use. View images
Pulsing and Modes
-
Pulsing range of 0 to 5,000 Hz: Adjustable frequencies to enhance effects like circulation or relaxation.
-
7 Prebuilt performance modes: Pre-set options for skin, pain, sleep, weight loss, mental health and more.
-
Special custom mode: Adjust intensities and pulsing for 4 channels (red, blue, near infrared and 1064nm) individually.
Controls and Design
-
Touch interface and remote control: Easy adjustments from anywhere in the room.
-
30 degrees beam angle: Focused light for precise targeting without waste, at greater distances.
-
LED lifespan of 100,000 hours: Long-lasting LEDs equivalent to over 11 years of continuous use.
-
Voltage - AC 100-240V: Compatible with standard outlets worldwide.
Compliance and Certifications
RoHS Certificate:
RoHS stands for Restriction of Hazardous Substances. This certification ensures that our products have limited or no hazardous materials that are harmful to the environment and users. In simpler terms, these certificates ensure that our products are safe, environmentally friendly, and compliant with both European and U.S. standards.
CE Certificates: We have two CE certificates for our LED lights. These certificates confirm:
- Compliance with the European Low Voltage Directive, ensuring the product's electrical safety.
- Compliance with the Electromagnetic Compatibility Directive, ensuring the product won't interfere with other electronic devices or cause electromagnetic disturbances.
Product & Delivery Specs

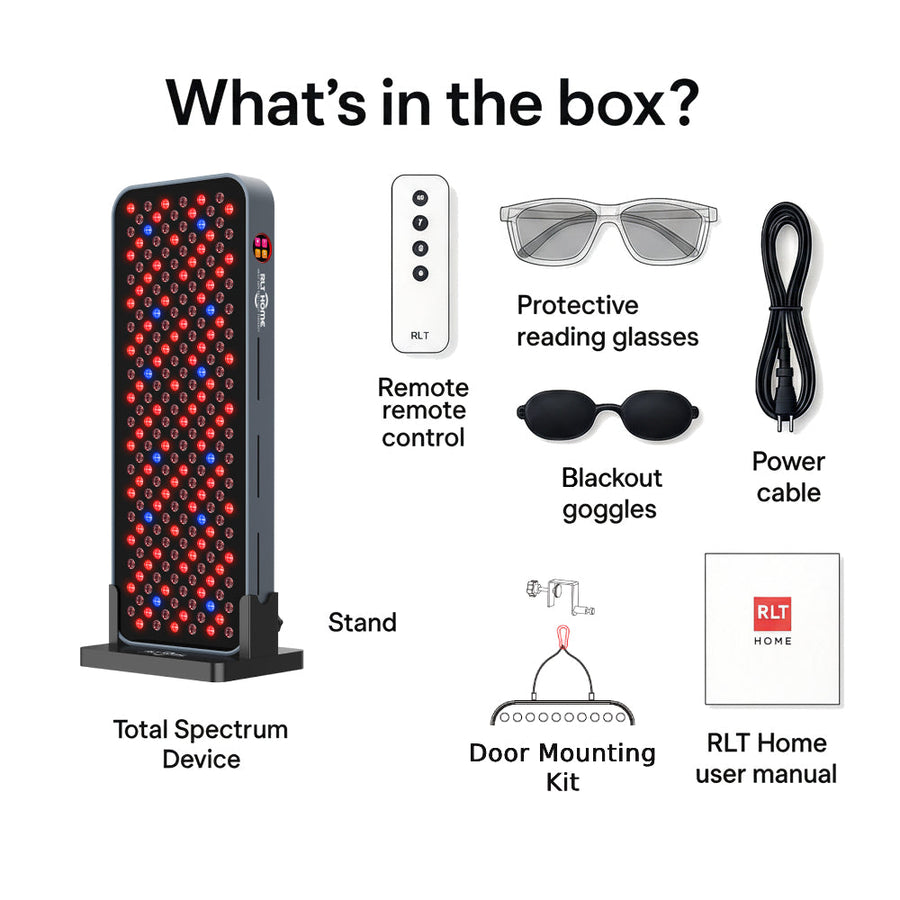

What's in the Box
- Total Spectrum COMPACT Device

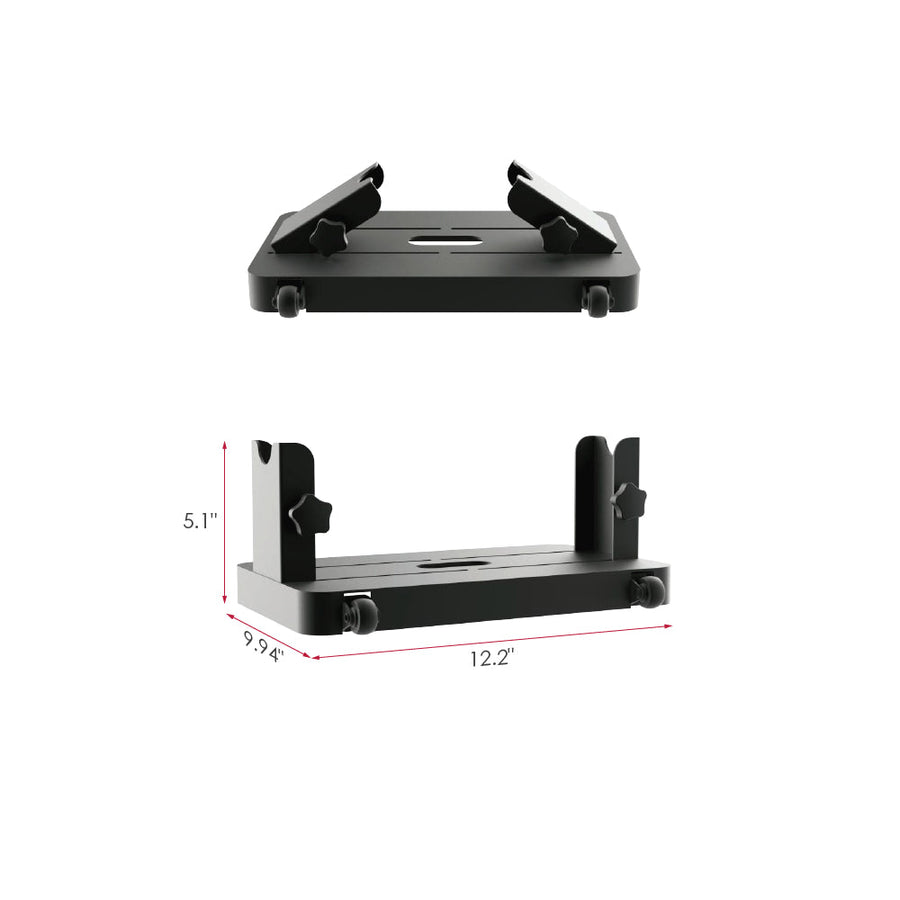

- Stand
- Remote Control
- Protective Reading Glasses
- Blackout Goggles
- RLT Home User Manual
- Power Cable
Dimensions and Weight
-

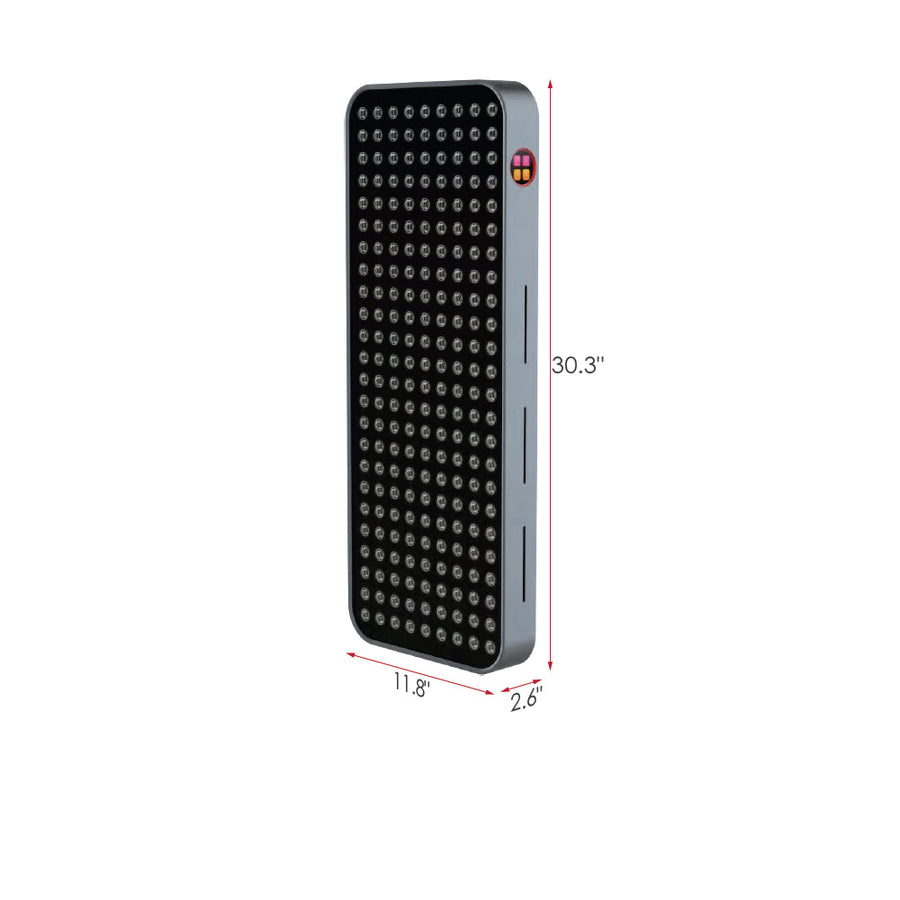

Device Size: 770 x 300 x 65 mm / 30.3" x 11.8" x 2.6"
-
Device Weight: 10 kg / 22 lbs
-
Device Box / Shipped Size: 850 x 380 x 180 mm / 33" x 15" x 7"
-
Device Box / Shipped Weight: 12 kg / 26.5 lbs
-
Material / Housing: Aluminum
